Evade The Sus Gravel Fork

The Sus Gravel Fork

Built for gravel riders who want suspension-corrected geometry without the added weight. The Sus Gravel Fork delivers versatility, clearance, and clean integration in a sleek carbon package.

With a longer axle-to-crown height of 415/425mm, this fork is suspension-corrected to maintain proper geometry on modern gravel builds. Diagonal flip-chips allow adjustable rake from 49mm to 54mm, giving riders the ability to fine-tune handling based on terrain and riding style. The super wide tire clearance supports up to 700 x 60c tires, opening up more possibilities for aggressive gravel and adventure setups.

Designed with flexibility in mind, this fork supports both regular and fully integrated cable routing in a single platform by simply changing the cable port.

Highlights
Longer axle-to-crown height of 415/425mm for suspension-corrected geometry

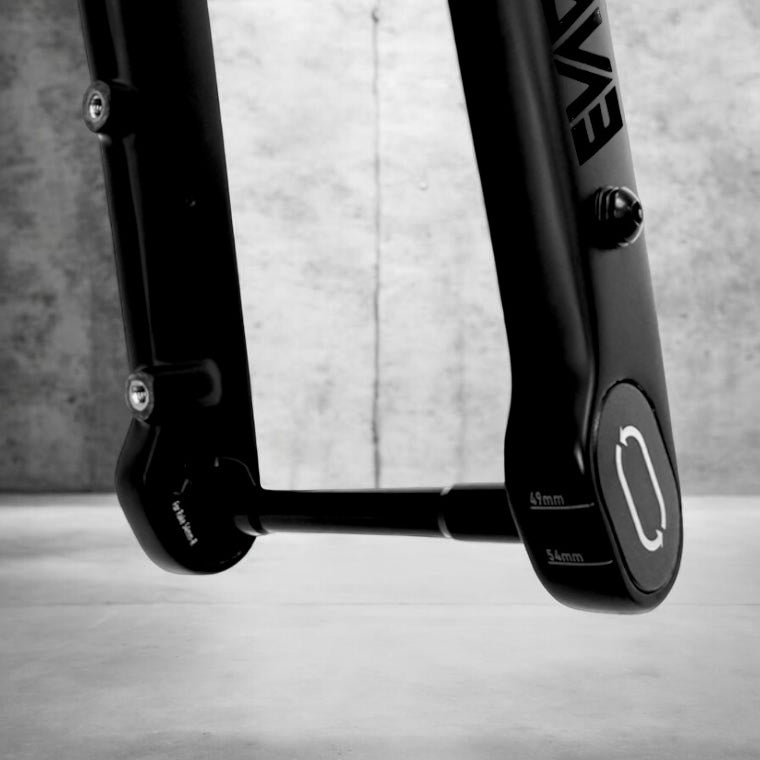

Diagonal flip-chips for adjustable rake between 49mm and 54mm
Super wide tire clearance up to 700 x 60c for greater tire choice
Compatible with both regular and fully integrated cable routing by changing the cable port

Specifications
Type: Carbon Suspension-Corrected Gravel Fork
Material: Toray T700 Carbon Fiber
Finish: UD Matte Black
Steerer: 1 1/8" to 1 1/2"
Steerer Tube Length: 350mm
Crown Width: 56mm
Axle to Crown: 415/425mm
Rake: 49/54mm (Diagonal Flip-Chip)
Tire Clearance: 700 x 60c
Disc Rotor Size: 160/180mm
Weight: 525g ±15g (Race Version), 545g ±15g (Wild Version with 8 bolts)
Thru Axle: 12x100mm
Brake: Flat Mount Disc Brake
Cable Routing: Regular and Fully Integrated (by changing the cable port)
Test Standard: ISO 4210 (with a 15% increase in force)

Versatile, refined, and ready for modern gravel builds.
