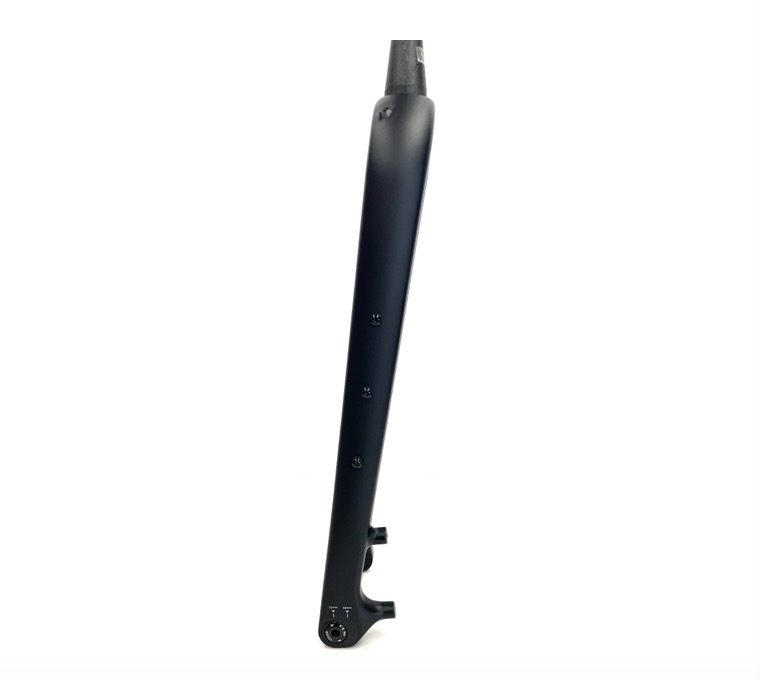

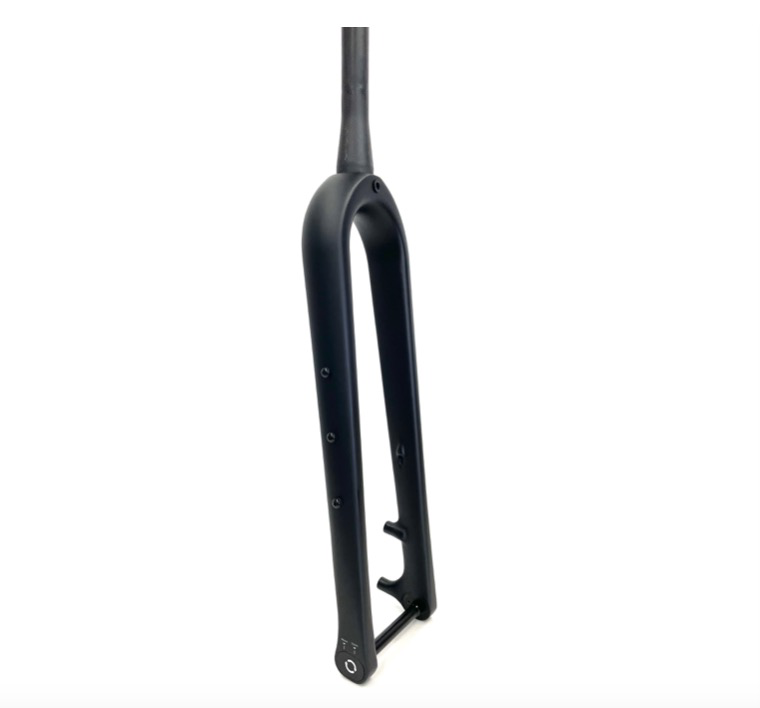

Evade Warhammer MTB fork

Highlights

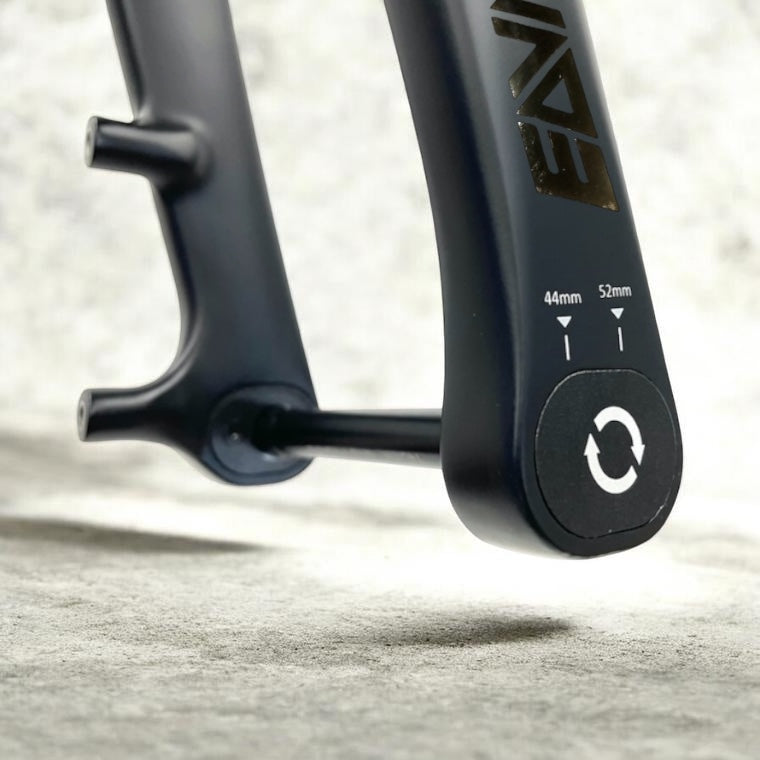

- Reversible drop-out chips for adjustable rake between 44mm and 52mm.

- Super wide tire clearance for up to 29 x 3" allows a great choice of tires.

- Dynamo cable routing / triple cage mounts.

- Modern geometry with extended Axle to Crown 490mm and 120mm suspension correction.

- Boost axle spacing 15x110mm.

Specs

Type: Carbon 29er MTB Boost Fork

Materials: Toray T700 Carbon

Finish: UD Matt Black

Steerer: 1 1/8" - 1 1/2"

Crown Width: 56mm

Rake: 44mm / 52mm (Adjustable)

Weight: 630g+/-15g

Thru Axle: 15x110mm

Axle to Crown: 490mm

Tire Clearance: 29 x 3"

Max Rotor Size: 180mm (with adaptor)

Brake: Post Mount Disc Brake

Light Mount: M6 Mount Front of Crown

Triple Cage Mounts

Internal Disc Brake Cable Routing

Dynamo Cable Routing
